Regenerative Thermal Oxidizer [https://www.yurcentrto.com/thermal-oxidizer/%5Ds (RTOs) are widely used in modern industries as one of the most efficient technologies for treating VOC-containing exhaust gases. They not only destroy harmful VOCs at high temperatures but also recover the majority of the heat generated during the oxidation process. This unique combination allows RTOs to achieve the dual goals of environmental protection and energy savings, making them an ideal solution for industrial waste-gas treatment. In this article, we will explain the basic operating principles of RTO systems, including heat recovery, VOC oxidation, and how different types of RTOs-two-bed, multi-bed, and rotary-operate in practice.
1. How an RTO Purifies VOCs and Recovers Heat
The core concept of an RTO is simple: VOC-laden exhaust is preheated through a ceramic heat-storage bed, sent into a high-temperature oxidation chamber to be burned, and then the cleaned gas transfers its heat back to another bed before leaving the system.
Here is the basic sequence:
1. Preheating via Ceramic Media – Exhaust air passes through a heat-storage chamber filled with ceramic media. The hot ceramic bed transfers heat to the incoming exhaust, raising its temperature. 2. Oxidation at High Temperature – When the preheated exhaust enters the oxidation chamber at around 800 degrees C, the VOCs undergo thermal oxidation. During this reaction, VOC molecules break down into harmless CO and HO. 3. Heat Release and Recovery – VOC oxidation is an exothermic reaction-it releases a large amount of heat. The RTO captures this heat and uses it to maintain the system temperature, reducing fuel consumption significantly. 4. Clean Gas Exits Through Another Heat-Storage Bed – The purified gas transfers its heat into a second ceramic bed. This stored heat will preheat the next incoming stream of exhaust gas.
Because a large portion of the reaction heat is recycled, the RTO often operates with extremely low fuel consumption. In some cases, when VOC concentration is sufficient, the RTO can even run without additional fuel input.
Image: https://ecdn6.globalso.com/upload/p/2910/image_other/2025-12/wechat-image_20251209173311_163_89.png
2. Operating Principle of a Two-Bed RTO
A two-bed RTO contains two ceramic chambers-commonly called A bed and B bed. The system works by alternating airflow between these two chambers to capture and reuse heat.
Basic cycle:
* Exhaust enters through Bed A, where it is preheated. * It flows into the 800 degrees C oxidation chamber, where VOCs are destroyed, and heat is released. * The clean, hot gas exits through Bed B, heating the ceramic media in that chamber.
Once Bed B becomes fully heated, the system switches valves:
* Exhaust begins entering through Bed B. * Clean gas exits through Bed A. * The cycle repeats continuously.
Unpurified gas during valve switching
During each switching moment, a small portion of exhaust gas inside the bed has not yet reached the oxidation chamber. When the valve switches, this gas is diverted into the exhaust line instead of being treated. This creates a brief “puff” of untreated air, known as valve-switching emissions, which is a common characteristic of two-bed RTOs.

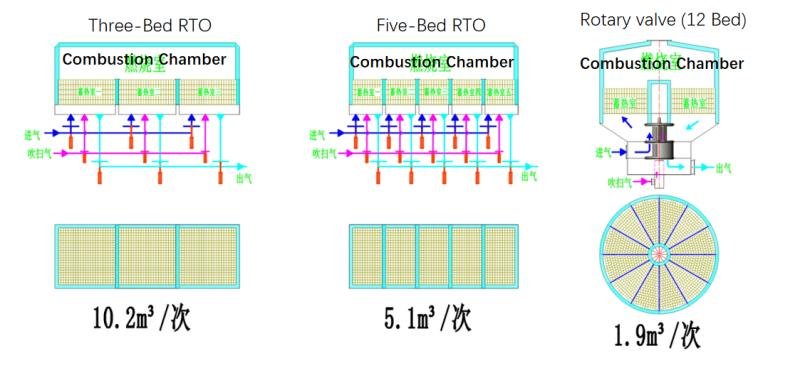

3. Operating Principle of a Multi-Bed RTO
A multi-bed RTO (typically three-bed) is designed to reduce the untreated emissions caused during switching.
With three chambers, one chamber is always dedicated to purging the bed that is about to switch flow direction. This purge step eliminates residual VOC-laden gas in the ceramic bed before the flow reverses.
As a result, multi-bed RTOs:
* Greatly reduce untreated emissions, * Achieve higher destruction efficiency, * Operate more smoothly across switching cycles.
4. Operating Principle of a Rotary RTO
A rotary RTO operates differently from the switching-valve systems. Instead of opening and closing valves, it uses a motor-driven rotating valve that turns at a constant, slow speed.
How it works:
* The circular RTO contains multiple heat-storage sectors arranged around a central axis. * The rotating valve continuously divides airflow into the inlet, outlet, and purge zones. * As the valve moves, the airflow path gradually shifts from one ceramic sector to the next.
This continuous rotation creates:
* Very smooth airflow changeover, * Minimal pressure fluctuation, * Very low untreated emissions, * High thermal efficiency.
Because switching is continuous rather than sudden, rotary RTOs are often considered the most stable and efficient type.
RTO technology plays a critical role in modern VOC control. By oxidizing VOCs at high temperatures and recovering a large proportion of the released heat, RTOs help industries meet strict environmental regulations while significantly reducing operating energy consumption. Whether using a two-bed, multi-bed, or rotary design, the fundamental principle remains the same: destroy harmful VOCs efficiently while maximizing heat recovery.
This combination of pollution control and energy savings is what continues to make RTOs one of the most widely adopted solutions for industrial exhaust gas purification.
