Understanding Air Handling Systems Without the Technical Jargon
If you’ve ever been involved in a building project and heard terms like AHU [https://zerohvacr.com/products/air-handling-unit] and FCU [https://zerohvacr.com/products/fan-coil-units-50-60hz] thrown around in meetings, you’re not alone. These acronyms show up in HVAC discussions all the time-and while they sound similar, they serve very different purposes.
Image: https://cdn.shopify.com/s/files/1/0775/3603/5052/files/Resistance_comes_from_1.png?v=1769666003
The good news is: you don’t need an engineering background to understand the difference. This article explains AHUs and FCUs in plain language, focusing on how they work, where they’re used, and how to think about choosing between them in real projects.
What Is an AHU and How Does It Work?
An Air Handling Unit, commonly referred to as an AHU, is best understood as a central air processing system for a building. Instead of serving a single room, an AHU conditions air in one central location and then distributes that air to multiple spaces through ductwork. Inside an AHU, air is filtered, heated or cooled, and often mixed with fresh outdoor air before it is delivered throughout the building.
Image: https://cdn.shopify.com/s/files/1/0775/3603/5052/files/Resistance_comes_from_2.png?v=1769667538
Because AHUs handle large volumes of air and serve many zones at once, they are typically used in office buildings, hospitals, airports, shopping centers, and other large commercial or institutional spaces. In everyday terms, an AHU prepares air once and shares it across many rooms.
What Is an FCU and Where Is It Typically Used?
A Fan Coil Unit, or FCU, works on a much smaller and more localized scale. Rather than conditioning air for an entire building, an FCU is designed to serve a single room or a limited zone. Each FCU contains a fan and a heating or cooling coil, allowing it to control temperature locally without relying on long duct runs.
Image: https://cdn.shopify.com/s/files/1/0775/3603/5052/files/Portfolio_2.png?v=1768192224
FCUs are commonly found in hotel rooms, apartments, residential buildings, and small commercial spaces where individual room control is important. Instead of sharing air across multiple areas, an FCU focuses on providing comfort exactly where it is installed.

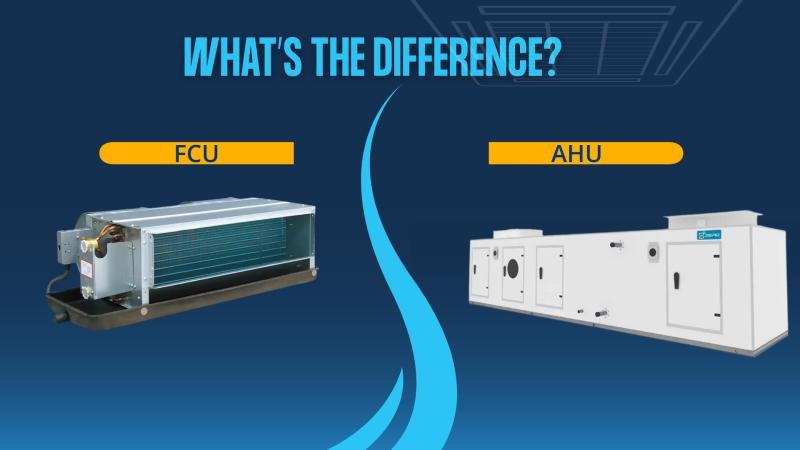

AHU vs FCU: Centralized Air vs Local Comfort Control
The most important distinction in the AHU vs FCU comparison comes down to how air is managed and controlled. AHUs operate as centralized systems, meaning one unit influences the air quality and temperature of many spaces at once. FCUs, on the other hand, are decentralized, with each unit managing comfort for its own room or zone.
This difference has a direct impact on how buildings feel and operate. Centralized systems tend to offer consistency across large areas, while decentralized systems offer flexibility and individual control. Neither approach is universally better; each is designed for different priorities.
AHU vs FCU in Terms of Air Quality
When it comes to air quality, AHUs often have a clear advantage. Because they are designed to handle large volumes of air, AHUs can accommodate higher-grade filtration and manage fresh air intake more effectively. This makes them especially suitable for environments where indoor air quality is critical, such as healthcare facilities or large offices.
FCUs typically focus more on temperature control than air treatment. In many buildings that use FCUs, fresh air is supplied by a separate ventilation system. As a result, FCUs alone are not usually responsible for overall air quality management, but rather for localized comfort.
Space, Installation, and Practical Design Considerations
From a practical standpoint, FCUs are often chosen because of their compact size and installation flexibility. They can be placed above ceilings or within rooms and require minimal ductwork, which makes them ideal for retrofit projects or buildings with limited ceiling space.
AHUs, by contrast, require mechanical rooms, larger duct networks, and more coordination during the design and construction phases. While this makes AHUs less flexible in certain projects, it also allows them to support larger, more integrated HVAC systems when space and planning allow.
Maintenance and Long-Term Operation
Maintenance is another area where the difference between AHUs and FCUs becomes apparent. AHUs centralize maintenance activities, allowing filters, coils, and fans to be serviced in one location. This can simplify long-term facility management, particularly in large buildings.
FCUs distribute maintenance across many units, which can increase service time, especially in buildings with a large number of rooms. However, this same decentralization can also limit the impact of a single failure, since one FCU typically affects only one space.
Choosing Between AHU vs FCU in Real Projects
Rather than asking which system is better, a more useful question is which system better fits the building’s needs. AHUs are well suited for projects that require consistent air quality, centralized control, and large-scale distribution. FCUs are often the right choice when individual room control, flexibility, and simplified installation are priorities.
In many modern HVAC designs, AHUs and FCUs are not competing options but complementary ones. AHUs may handle ventilation and air quality, while FCUs manage temperature at the room level. This hybrid approach allows designers to balance comfort, efficiency, and practicality.
COMPARISON ASPECT
AHU (AIR HANDLING UNIT)
FCU (FAN COIL UNIT)
System Role
Building-level, centralized air handling
Room-level, localized terminal unit
Service Coverage
Serves multiple zones, entire floors, or whole buildings
Typically serves a single room or small zone
Air Treatment Method
Centralized filtration, cooling/heating, and air distribution
Local cooling/heating with local air delivery
Fresh Air Capability
Strong; capable of handling large volumes of fresh air
Limited; usually requires a separate fresh air system
Filtration Level
Can be equipped with high-grade filtration (e.g. hospitals, offices)
Typically basic filtration
Indoor Air Quality (IAQ) Control
Strong; suitable for projects with high IAQ requirements
Focuses mainly on temperature, not IAQ
System Configuration
Centralized unit with ductwork system
Multiple decentralized units
Control Method
Primarily centralized control
Independent room or zone control
Installation Location
Mechanical rooms, rooftops, or technical floors
Above ceilings or within rooms
Ductwork Requirement
More complex duct systems with longer runs
Minimal ductwork or ductless
Project Complexity
High (requires system-level design and coordination)
Medium to low (flexible and modular)
Maintenance Approach
Centralized maintenance, easier to manage
Distributed maintenance across many units
Typical Applications
Office buildings, hospitals, malls, airports
Hotels, apartments, small offices, residential buildings
Final Thoughts: Understanding AHU vs FCU Without the Complexity
The difference between AHUs and FCUs becomes much clearer when you focus on how air is treated, where control is needed, and how the building will actually be used. AHUs and FCUs are simply tools designed for different roles within HVAC systems.
By understanding AHU vs FCU from a practical perspective rather than a technical one, project stakeholders can make more informed decisions-without needing to become HVAC experts themselves.
For more details, you can explore our AHU and FCU solutions and project support resources at zerohvacr.com [https://zerohvacr.com/].
