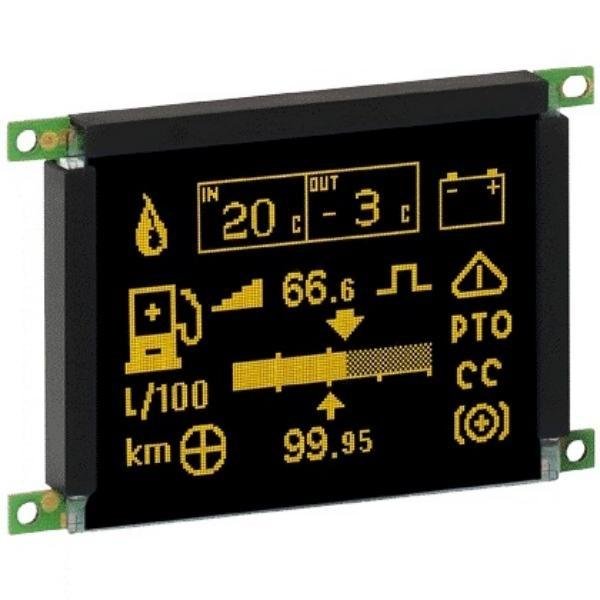

In the intricate world of specialized display technology, where performance parameters are pushed to their absolute limits, the EL160.120.39 [https://www.invshop.com/el16012039-lumineq-31-inch-160120-lcd-panel-20985.html?lang=en] Lumineq 3.1-inch 160×120 LCD panel stands as a remarkable engineering solution. This is not a display designed for consumer smartphones or televisions; it is a purpose-built component engineered to thrive where conventional screens would fail. Operating on the principle of Electroluminescence (EL), this panel represents a distinct path in flat-panel display technology, offering a unique combination of characteristics that make it indispensable for critical applications.
This article delves into a comprehensive analysis of the EL160.120.39 [https://www.invshop.com/el16012039-lumineq-31-inch-160120-lcd-panel-20985.html?lang=en] panel. We will move beyond basic specifications to explore the fundamental science of its EL technology, dissect its rugged construction, and benchmark its performance against other display types. Furthermore, we will investigate the specific industrial and military sectors that rely on its capabilities, provide practical guidance for system integration, and finally, project the future trajectory of this resilient display technology in an evolving market.
The Science of Electroluminescence: How the Lumineq Panel Works
At the core of the EL160.120.39 [https://www.invshop.com/el16012039-lumineq-31-inch-160120-lcd-panel-20985.html?lang=en] panel lies Electroluminescent (EL) technology, a fundamentally different approach from common Liquid Crystal Displays (LCDs) or Organic Light-Emitting Diodes (OLEDs). Unlike LCDs which require a separate backlight, EL displays are emissive . Their core structure is a sandwich of a phosphor layer (often Zinc Sulfide doped with Manganese) between two conductive electrodes, one of which is transparent.
When an alternating current (AC) voltage is applied across these electrodes, the resulting electric field excites the phosphor atoms, causing them to emit light directly. This process generates the panel’s characteristic, even glow. The 160×120 resolution, while modest by consumer standards, is achieved by patterning the electrode layers into a precise matrix of individual pixels. The key advantages inherent to this physics are immediate: exceptional viewing angles nearing 180 degrees with no color shift, a solid-state construction with no fragile liquid components, and the ability to produce high-contrast, legible monochrome (typically yellow-green) images with very low power consumption.
Unmatched Ruggedness: Built for Extreme Environments
The architectural simplicity of EL technology directly translates into extraordinary physical robustness. The EL160.120.39 is engineered to be a mission-critical component. Its solid-state design lacks the fluid crystals, delicate polarizers, and complex backlight assemblies of standard LCDs, making it inherently resistant to shock, vibration, and mechanical stress. The panel can operate across a breathtakingly wide temperature range, often from -40 degrees C to +85 degrees C or beyond, without suffering from the slow response times or complete failure that plague LCDs in extreme cold.
Furthermore, the display is exceptionally resistant to moisture, humidity, and condensation. Its layers are typically sealed against environmental ingress, a crucial feature for aviation, maritime, or field-deployed military equipment. This ruggedness is not an added feature but a foundational characteristic of the EL design philosophy. It ensures that the display remains the most reliable part of a system, providing critical visual feedback in situations where failure is not an option, from a bumpy armored vehicle ride to the vacuum and thermal cycles of aerospace.
Performance Analysis: Strengths and Trade-offs
Evaluating the EL160.120.39 requires a context-specific lens. Its performance profile presents a compelling set of strengths balanced against deliberate trade-offs. Its most lauded attributes include ultra-wide viewing angles, outstanding readability in direct sunlight (due to its emissive nature and often anti-reflective treatments), and very low power draw. The fast response time of the phosphor excitation eliminates motion blur, making it suitable for dynamic instrumentation.
The primary trade-offs are in color and resolution. The display is monochrome, emitting light in a specific wavelength (e.g., yellow-green, which is highly perceptible to the human eye). The 160×120 pixel array is low-density, suited for displaying critical symbology, alphanumeric data, or simplified graphics, not complex imagery. Its brightness, while excellent for viewing, is typically lower in absolute terms than high-brightness LED-backlit LCDs, though its contrast remains stable across all lighting conditions. Thus, its performance is optimal for functional legibility and reliability, not for multimedia fidelity.
Core Application Sectors: Where Reliability is Paramount
The unique performance matrix of the EL160.120.39 [https://www.invshop.com/el16012039-lumineq-31-inch-160120-lcd-panel-20985.html?lang=en] panel carves out its niche in demanding professional and industrial sectors. Aviation and Aerospace is a primary domain, where these displays serve as primary flight displays (PFDs) or engine-indicating and crew-alerting system (EICAS) screens in general aviation, helicopters, and unmanned aerial vehicles (UAVs), prized for their cold-start capability and vibration resistance.
In Military and Defense, they are integrated into vehicle dashboard panels, soldier-portable devices, and control units for weapon systems, where ruggedness and night-vision goggle (NVG) compatibility are essential. Industrial Automation and Medical Device manufacturers utilize them for control panels on factory floor equipment, diagnostic devices, and patient monitors that must withstand harsh sterilization processes or 24/7 operation. In each case, the panel is selected because its failure could lead to catastrophic operational, financial, or human cost.
Integration Essentials for Engineers and Designers
Successfully integrating the EL160.120.39 [https://www.invshop.com/el16012039-lumineq-31-inch-160120-lcd-panel-20985.html?lang=en] into a product requires attention to its specific electrical and physical interface needs. The panel requires a relatively high-voltage, mid-frequency AC drive signal (often hundreds of volts at ~400 Hz), necessitating a dedicated inverter/driver circuit. This is a key differentiator from low-voltage DC-driven LCDs and must be factored into power supply and EMI/EMC design.
Physically, the panel is often supplied as a bare glass assembly or in a simple metal frame, offering flexibility for custom front bezels or environmental sealing. Designers must consider the optical stack: adding a bonded cover glass or capacitive touch panel will affect optical clarity and may require driver voltage adjustment. Thermal management is straightforward due to low heat output, but the operating temperature limits of the chosen driver components must align with the panel’s own range. Thorough testing of the integrated system under expected environmental stresses is non-negotiable.
Image: https://www.abnewswire.com/upload/2026/01/b39ff9cc0dd5ce1e167fba5f02ae944e.jpg
Image: https://www.abnewswire.com/upload/2026/01/b9c60e3d8ae4ded853d6fa0f9cda340f.jpg
The Future of EL Displays in a Competitive Landscape
The display technology landscape is dominated by advances in high-resolution, full-color LCD and OLED. However, the future for specialized EL displays like the Lumineq panel remains secure and is evolving. The trend is not toward competing on consumer metrics but on deepening its core competencies. Research focuses on enhancing phosphor efficiency to improve brightness and longevity, exploring new dopants for different monochrome hues (like white or blue), and developing more compact and efficient driver ICs.
Integration with new sensing and interaction modalities is also key. Future iterations may see EL panels seamlessly combined with integrated touch (including gloved-hand operation), embedded sensors, or even flexible substrates for novel form factors. As the Internet of Things (IoT) and ruggedized portable electronics expand into more extreme environments, the demand for utterly reliable, low-power, and durable displays will grow, ensuring that EL technology maintains its vital, if specialized, role in the technological ecosystem.
FAQs: EL160.120.39 Lumineq LCD Panel
1. What does “EL” stand for in this display? EL stands for Electroluminescence, the technology where light is emitted directly from a phosphor material excited by an alternating electric field.
2. What is the typical color of this display? It most commonly emits a yellow-green light, which offers high visual acuity and is compatible with night vision systems.
3. Why is this panel considered so rugged? Its solid-state construction (no liquids, fragile backlights, or complex layers) makes it highly resistant to shock, vibration, extreme temperatures, and moisture.
4. Can it be used in freezing conditions? Yes. Unlike LCDs which can freeze or respond sluggishly, EL panels like the EL160.120.39 typically operate reliably from -40 degrees C and below.
5. What is the main disadvantage of this display? The primary trade-offs are its monochrome output and relatively low resolution (160×120), making it unsuitable for full-color or detailed imagery.
6. What kind of power supply does it need? It requires a specialized inverter to generate a high-voltage AC signal (e.g., ~200V AC at 400-600 Hz) from a standard low-voltage DC source.
7. Is it readable in bright sunlight? Yes. As an emissive display with no reflective layers, it maintains excellent contrast and readability in direct sunlight.
8. What are its most common applications? Avionics (aircraft instrumentation), military vehicle displays, industrial control panels, and medical monitoring devices.
9. How does its viewing angle compare to an LCD? It has a near-perfect 180-degree viewing angle with no color or contrast degradation, far superior to most LCDs.
10. Can a touch screen be added to it? Yes, resistive or capacitive touch panels can be laminated onto the display, though this requires careful optical and electrical integration.
Conclusion
The EL160.120.39 Lumineq panel is a paradigm of purpose-driven engineering. It eschews the mainstream pursuit of pixel density and color gamut to excel in the domains of absolute reliability, environmental resilience, and functional clarity. Its value is not measured in megapixels, but in mission-success rates and mean time between failures in the world’s most challenging operational environments.
For engineers and product designers working in aerospace, defense, and heavy industry, this display represents a proven solution to a critical challenge: presenting vital information under duress. As technology advances, the core principles embodied by the EL160.120.39-simplicity, robustness, and efficiency-will continue to inform the development of specialized displays, ensuring that even as screens become more immersive elsewhere, there remains a steadfast guardian of visual information where it is needed most.
